Equipped with one of the best waste heat recovery boiler for billet reheating furnace brands, JSDJ Heavy Industry Co.,Ltd is one of the professional quality billet reheating furnace waste heat recovery, steel bar re-rolling mill waste heat recovery, steel rolling mill plant waste heat recovery manufacturers in China.
Waste Heat Recovery Boiler for Billet Reheating Furnace
Necessity
The steel rolling process consumes a tremendous amount energy, for which the average thermal efficiency is only 20% ~ 30%. Around 70% ~ 80% of the entire energy input required for such process has traditionally been lost in the environment, and at least 30% of this lost energy is carried by flue gas. Especially for steel rolling mills without a regenerative combustion system, it is important to recover the waste heat from the flue gas coming out of the billet reheating furnace.
Design Ingenuity
Due to the wild fluctuation of gas quantity and temperature, the reheating furnace is required to have absolute control over the furnace pressure. Our waste heat recovery system for this application adopts sealed header structure, in which surface area employs a unique multi-free-end-surface design allowing it to stretch flexibly within a safe interval as the heat expansion frequently takes its place. Due to our rich R & D experience in waste heat recovery technologies, the gas velocity is optimized for the full control of gas-side resistance force. The average investment recovery period is around 4 years.
Key Parameters
1 T of billets = 50 KG ~ 60 KG of steam output
Working pressure: 0.8 MPA ~ 2.0 MPA
Steam temp: 320 ℃ (saturated temp)

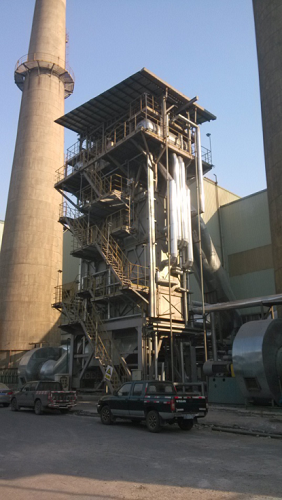

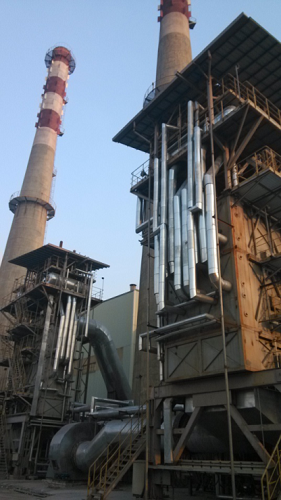

PROJECT WASTE HEAT RECOVERY IN BILLET REHEATING FOR:
BAOSTEEL GROUP - STAINLESS STEEL DIVISION
Rated steam output: 3.6 T / H @ 1.8 MPA
Rated steam temp: 300 Deg Celsius
