Equipped with one of the best rotary hearth furnace waste heat recovery boiler brands, JSDJ Heavy Industry Co.,Ltd is one of the professional quality rotary hearth furnace waste heat recovery system, waste heat recovery steam generator in sponge iron plant, waste heat recovery steel making, sponge iron power plant manufacturers in China.

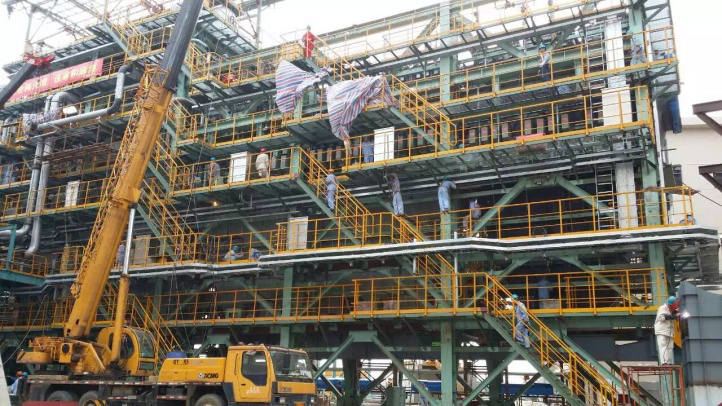

Rotary Hearth Furnace (RHF)Waste Heat Recovery Boiler
Necessity
A large amount of high temperature flue gas is being produced in conjunction with the daily operation of rotary hearth furnace. In order to avoid direct flue gas emissions, waste heat recovery boiler and bag-house dust collector are needed to conduct heat recovery process and gas purification. Due to the unique nature of RHF flue gas, if the wast heat recovery boiler and the rapping cleaning system of heat surface are not meticulously designed, it will lead to severe fouling of heat surface, reduction of heat transfer, and malfunction of the entire boiler system.
Design Ingenuity
Our boiler adopts horizontal bottom-vacant structure, causing dust to drop into the hopper bottom readily & ceaselessly, and be conveyed out of the boiler by ash-conveying device. The heat surface is meticulously designed & laid out and made of optimal material to withstand corrosive flue gas.Knowing the true meaning of customization, we base the design of our hopper on specific flue gas conditions (i.e. character & temperature) conveyed to us by our clients to avoid dust accumulation inside the hopper.
Key Parameters
Rated steam pressure: 0.8 MPA ~ 2.5 MPA
Rated steam temp: saturated steam temp ~ 300℃

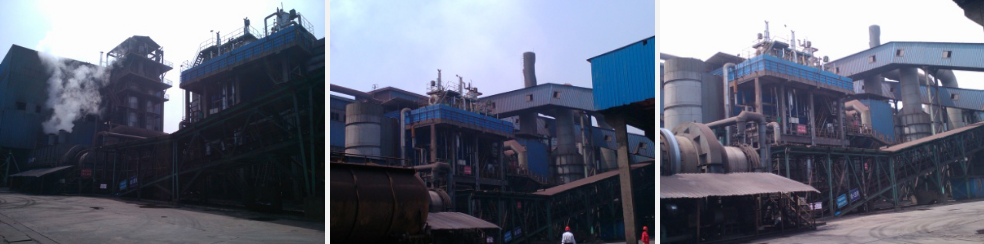

PROJECT RHF WASTE HEAT RECOVERY FOR:
JIANGSU SHAGANG CO., LTD. (SHA-STEEL)
ANNUAL CAPACITY: 300 KT
Rated steam output: 29.5 T / H @ 1.6 MPA
Rated steam temp: 300 Deg Celsius
PROJECT RHF WASTE HEAT RECOVERY FOR:
BAOSTEEL GROUP CO., LTD. - ZHANJIANG PLANT (INSTALLATION IN PROCESS)
ANNUAL CAPACITY: 200 KT
Rated steam output: 25.5 T / H @ 1.6 MPA
Rated steam temp: 255 Deg Celsius
